Chicago Pneumatic

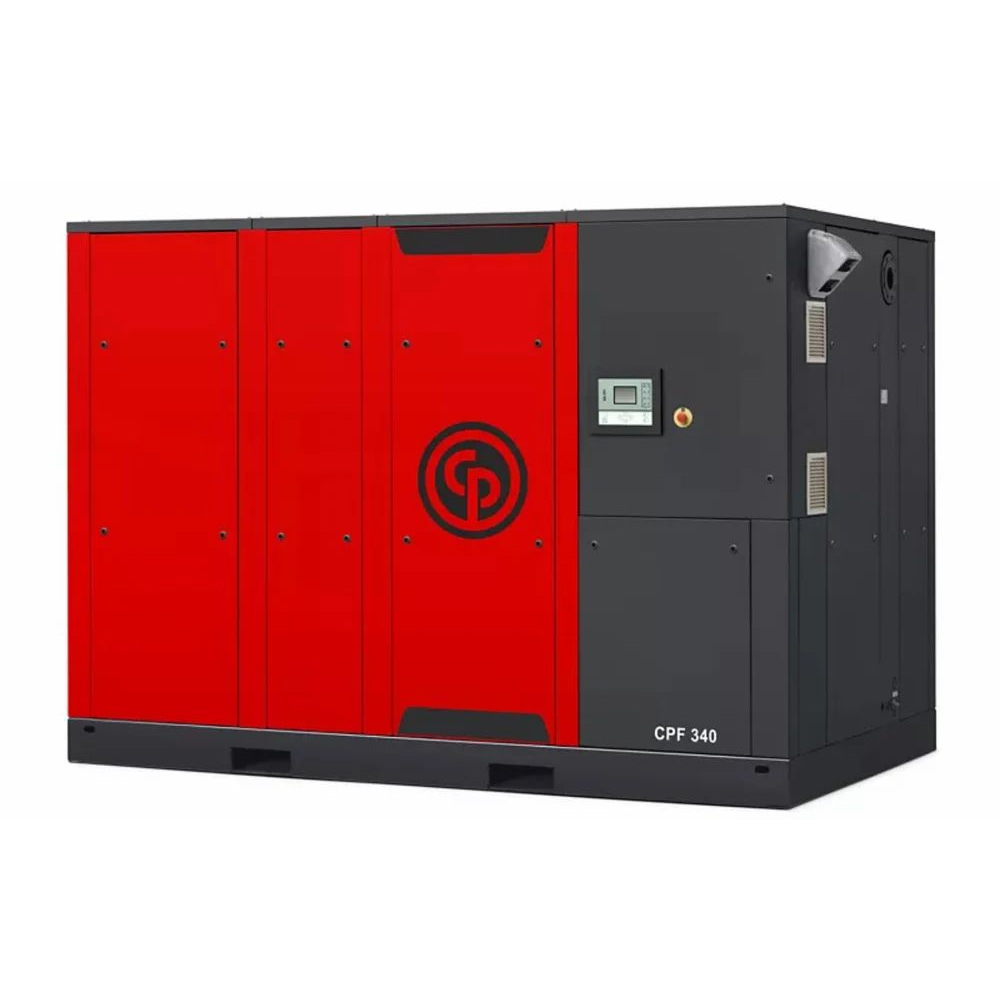

CPF Series 270-340 HP
The CPF Series 270-340 HP is engineered for large-scale manufacturing, providing consistent high-capacity airflow for demanding applications. With a durable belt or gear drive transmission and optimized layout for industrial setups, it delivers pressure up to 13 bar efficiently. This series is ideal for round-the-clock use in high-load conditions.
- Motor
- 270–340 HP
- Capacity FAD
- 1094–1599 CFM
- Working Pressure
- 7–13 bar
Built for 24/7 industrial duty
Additional Details
Why Industrial Users Choose CPF Compressors
High capacity output with stable pressure
The CPF Series is engineered to deliver a high volume of compressed air with a consistent and stable pressure output, ensuring reliable performance even during peak demand periods.
Durable air-end and efficient drive system
A robust air-end and an energy-efficient drive system are at the core of the CPF Series, providing long-term reliability and minimizing the risk of downtime.
Designed for harsh Indian industrial environments
Built to withstand challenging conditions like high ambient temperatures and dusty surroundings, the CPF Series ensures optimal performance and a longer operational lifespan in typical Indian industrial settings.
Compatible with energy recovery and VSD systems
This series is fully compatible with energy recovery systems and Variable Speed Drive (VSD) technology, allowing users to significantly reduce power consumption and recover waste heat, leading to lower operating costs.
The details
Technical Specifications
| Brand | Chicago Pneumatic |
|---|---|
| Model Series | CPF Series 270-340 HP |
| Motor | 270–340 HP |
| Capacity FAD | 1094–1599 CFM |
| Working Pressure | 7–13 bar |
| Drive Type | Fixed-Speed |
| Transmission | Gear-Driven |
| Lubrication | Oil-Injected |
| Compressor Type | Rotary Screw Air Compressor |
| Mounting Options | Floor Mounted |
Where it works
Applications
Take a closer look
Brochures & Downloads
Download CPF Series 270-340 HP Brochure
Before you specify
Frequently Asked Questions
What’s the expected life of CPF Series compressors?
With proper maintenance, over 10–15 years in continuous operation.
Can a CPF Series compressor support my 24/7 production line?
Absolutely, it is built for non-stop heavy-duty usage.
What about after-sales support?
Comprehensive AMC, spares, and on-site support available through ATCORP’s nationwide network.
