Chicago Pneumatic

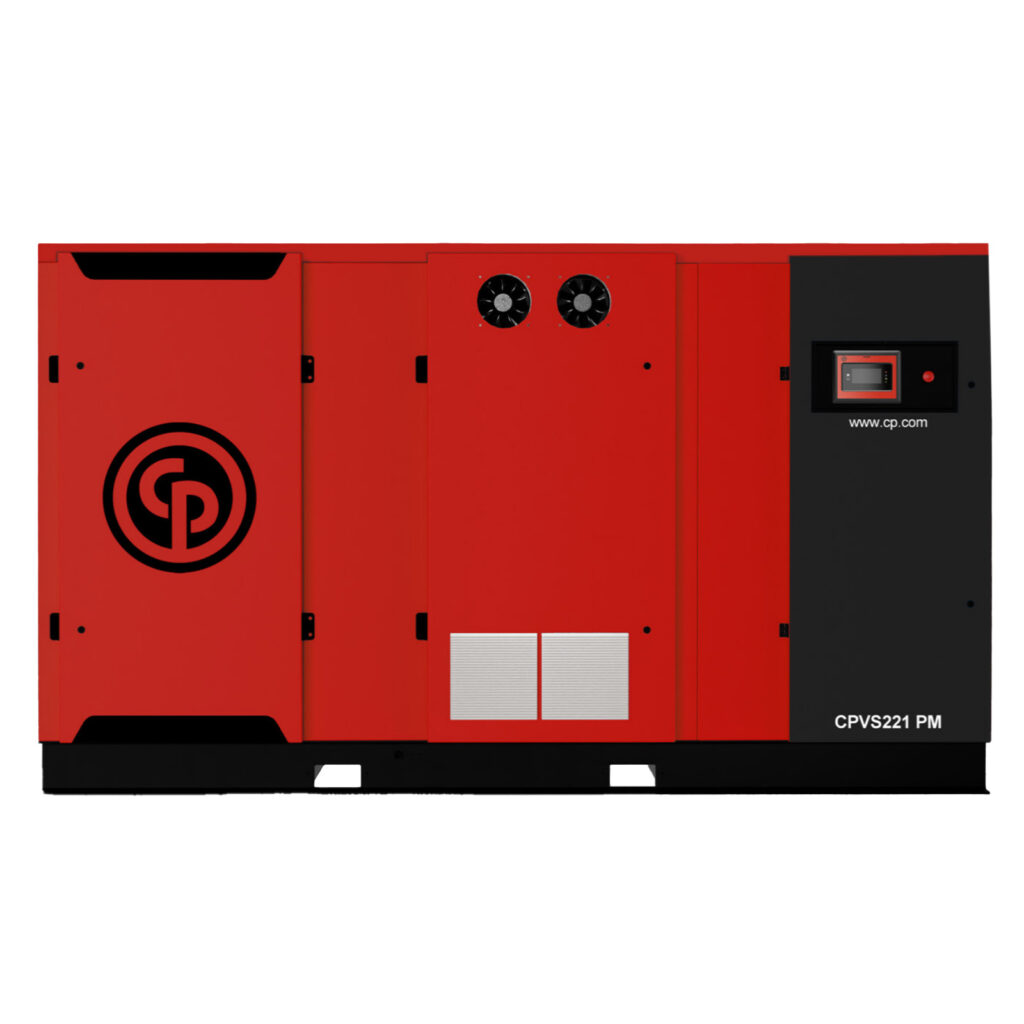

CPVS PM Series 220-340 HP
The CPVS PM Series 220-340 HP is engineered specifically for large-scale manufacturing operations, providing consistent, high-capacity airflow essential for the most demanding applications. This powerful series guarantees continuous, reliable performance under extreme high-load conditions. It features an extremely durable belt or gear drive transmission and a robust, optimized layout for seamless integration into large industrial facilities. Delivering highly efficient pressure in the range of 7 – 13 bar, this series is the definitive choice for round-the-clock use where maximum uptime and efficiency are crucial.
- Motor
- 220–340 HP
- Capacity FAD
- 180–1491 CFM
- Working Pressure
- 7–13 bar
Built for 24/7 industrial duty
Additional Details
Key Benefits of CPVS PM Series
High capacity output with stable pressure
The CPVS PM Series is engineered to deliver a high volume of compressed air with a consistent and stable pressure output, ensuring reliable performance even during peak demand periods.
Durable air-end and efficient drive system
A robust air-end and an energy-efficient drive system are at the core of the CPVS PM Series, providing long-term reliability and minimizing the risk of downtime.
Designed for harsh Indian industrial environments
Built to withstand challenging conditions like high ambient temperatures and dusty surroundings, the CPVS PM Series ensures optimal performance and a longer operational lifespan in typical Indian industrial settings.
Compatible with energy recovery and VSD systems
This series is fully compatible with energy recovery systems and Variable Speed Drive (VSD) technology, allowing users to significantly reduce power consumption and recover waste heat, leading to lower operating costs.
The details
Technical Specifications
| Brand | Chicago Pneumatic |
|---|---|
| Model Series | CPVS PM Series 220-340 HP |
| Motor | 220–340 HP |
| Capacity FAD | 180–1491 CFM |
| Working Pressure | 7–13 bar |
| Drive Type | Variable Speed Drive |
| Transmission | Direct-Driven |
| Lubrication | Oil-Injected |
| Compressor Type | Rotary Screw Air Compressor |
| Mounting Options | Tank & Floor Mounted |
| Controller Type | IE4 Internal Permanent |
Where it works
Applications
Take a closer look
Brochures & Downloads
Download CPVS PM Series 220-340 HP Brochure
Brochure file pending import: this form will save the lead and notify ATCORP, but no PDF was publicly discoverable on the old dev site.
Before you specify
Frequently Asked Questions
What is the expected life of CPVS PM Series compressors?
With proper maintenance, over 10-15 years in continuous operation.
Is CPVS PM Series 220-340 HP tank-mounted or floor-mounted?
The CPVS PM compressors support both tank-mounted and floor-mounted configurations.
Can I integrate this compressor with my production line?
Yes, CPVS PM Series compressors are compatible with dryers, filters, and PLCs/BMS.
